CTSRModel Class Reference

A model. More...

#include <tvu_sr.h>

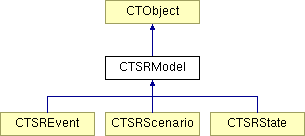

Inheritance diagram for CTSRModel::

Public Methods
	CTSRModel ()
	Constructor/destructor. More...
	~CTSRModel ()
	DEFINE_ID_FUNCTIONS (CTSRModel, CTObject, CLASSNAME_SR_SRMODEL_ID, CLASSNAME_SR_SRMODEL) public
virtual CTAlarm*	GenerateAlarm (CTObject *ScenarioInstance)
	Generate an alarm: this fnction generates a new alarm when a behavior of this model is just recognised. More...
virtual TBOOL	IsPrimaryModel ()
	To verify if it's a primary model: normally, it's state model This function run correctly is Build was called. More...
virtual TINT	ActorOfTypeCount (TINT Type)
	Get the number of actor variable of a type (zone, equipement, wall, ...). More...
virtual CTSRModel*	GenerateUncertainModel (TLPCSTR SubscenarioName)
	=============================================================== FOR UNCERTAIN PROCESSING: these functions will be called before all processings Generate a scenrio model by removing a sub-scenario. More...
virtual CTList	FindEntityPrivateActorVariables (CTSREntityHolder *pEntity, TBOOL bExpectedEntity=TTRUE)
	Find the actor variables the appear in a given entity but do not appear in the others. More...
virtual TBOOL	RemoveAnEntity (TLPCSTR SubscenarioName)
	Remove an entity by it name. More...
virtual TBOOL	RemoveConstraints (TLPCSTR VariableName)
	Remove all constraints containing a variable. More...
virtual TBOOL	Build ()
	Build the constraints Objects: list of environment objects. More...
virtual TBOOL	VerifyActorVariable (CTSRVar *pVar)
	For the composed scenarios, we need to verify that all actor variables present in entities. More...
virtual TBOOL	VerifyActorVariables ()
virtual TBOOL	CreateNegativeActorVariables ()
	Create negative actor variables for the model. More...
virtual TBOOL	OrderSubScenarios ()
	To order in time the sub-scenarios of the scenario model To do this, we use the method of C. Dousson and M. Ghallab to build a graph of temporal relations of sub-scenarios. More...
virtual TBOOL	CreateEntityVars ()
	Create entity variables from EntityHolders: Create variable and category them in POSITIVE and NEGATIVE After OrderSubScenarios(). More...
virtual TBOOL	AttachVarConstraints ()
	Attach variable for the constraints: attach object for the variable presenting in the constraints and create temporal variables if neccessary This fnction must be called after set context for the motor and after CreateEntityVars(); and before ClassifyConstraints();. More...
TBOOL	ClassifyConstraints ()
	Classify the constraints into 2 categories: Positive constraints and Negative constraints. More...
TBOOL	IsPositiveConstraints (CTList Expression)
TBOOL	CreateNeededNegativeVars ()
	Create the list of all needed negative variables for all negative constraints. More...
CTList	GetConstraintNeededNegativeVars (CTList Expression, CTList pResult=TNULL)
	Create the list of negative variable needed to evalue a negative constraint Expression: expression to calculate pResult: the list to stock all variables, NULL: create a new list. More...
virtual TBOOL	BuildActorVarConstraints ()
	Build the constraints for the actor variables: gather the constraints for the actor variables Must be called after AttachVarConstraints(). More...
virtual TBOOL	BuildEntityVarConstraints ()
	Build the constraints for the entity variables: gather the constraints for the entity variables Must be called after CreateEntityVars(), ClassifyConstraints(), AttachVarConstraints(). More...
virtual TBOOL	ModifyTemporalConstraints ()
	Replace a temporal variable by an expression to acces to the variable in an intermediate model. More...
virtual TBOOL	ModifyTemporalConstraint (CTList pConstraint, CTList pVars, TINT iOrder=-1)
virtual CTList	GetDependenceModelNames ()
	Return the list of dependence model (sub-scenario model) names Before delete tehh list, must call Delete(TFALSE) for remove the list without remove the holded elements. More...
virtual CTList	BuildIntermediateModels ()
	Generate the list of intermediate models: The list of sub-scenarios must be ordered in time before calling this function S = (S1, S2, S3, S4) => (((S1, S2), S3), S4). More...
virtual CTSREntityHolder*	BuildFromOrigin (CTSRModel *pOriginModel, CTSREntityHolder *Start, CTSREntityHolder *Termination)
	An intermediate model build the lists of actors, constraints,... from an original model. More...
virtual TLPSTR	GenerateItermediateModelName (TLPSTR pBuff, TINT nModel)
	Generate name for an intermediate model. More...
virtual TBOOL	BuildEntities ()
	Build entities: link to the variables/actors/objects of enviremet. More...
virtual TBOOL	BuildExpectedModels (CTList pModels)
	Build the expected models: create the trigger models. More...
virtual TBOOL	IsSatisfied (CTSRTriggerInstance *pTrigger, TBOOL FirstSolution)
	When the actor variables are well attached a value. We call this function to verify if it exists a sequences of entities matching the model. This process will assign for each temporal variable a value. pTrigger: the trigger to verify. NULL -> nothing to verify (primary model). Normally: a complex scenario contains 2 sub-scenarios (start & termination). The termination is contained in the trigger. So we must search only a value for the start. More...
virtual TBOOL	VerifyNegativeConstraints ()
	If the scenario model contains a negative entity, we need verifying it. Do to this, we need find a recognized scenario sf corresponding the forbidden entity. If it exists a sf satisfying all constraints => the scenario is not recognized. This function is only called in the recgnition of a composed scenario. More...
virtual TBOOL	Exists (CTList pEntities, CTList pValues=TNULL)
virtual CTList	CreateTriggers (CTList pTriggerInstances, CTSRBehaviourInstance *pTermination, TLPCSTR lpCreatedTriggers=TNULL)
	Create the list of trigger instances if the model is satisfied lpCreatedTriggers([0, 1, 1,....]): marks the triggers are used. NULL => create all. More...
CTSRObject*	Produce ()
	Create and fill in every fields of the produced object. More...
virtual TBOOL	IsAutoProlongable ()
	Determine if the behaviour may be prolonged automatically without reverification of its constraints This will be called by the initial module. More...
CTSRModel&	operator= (CTSRModel &Object)
	Operations. More...
Data Fields
CTList	m_ActorVars
	The actor variables of the model. More...
CTList	m_ExpectedEntities
	For loading the model: This is the definition of experts. More...
CTList	m_ForbiddenEntities
	The expected sub behaviors. More...
CTList	m_Constraints
	The behaviors are forbidden. More...
CTList	m_ProductionFormulas
	All the constraints defined by experts. More...
CTSRAlarmModel*	m_AlarmModel
	Object containing every formulas to be used to product a new entity. More...
CTList	m_EnVars
	Model of the alarm model Optional. More...
CTSREntityHolder*	m_Start
	For model environment variables For compiled model: This is for recognizing the model. More...
CTSREntityHolder*	m_Termination
	The start of a behavior. More...
CTList	m_PositiveConstraints
	The termination of a behavior. More...
CTList	m_NegativeConstraints
	The constraints have not any negative variable. More...
CTSRModel*	m_pOriginalModel
	The constraints have atleast one negative variable. More...
CTList	m_MissedVariables
	This is used for the intermediate models to indicate its original model. More...
CTList	m_Triggers
	This is used to store the temporal variables will be generated by the intermediate models Trigger models: automatically generated by the compiler. More...
TBOOL	m_IsBaseClass
	If the model is needed to construct another model. More...
TBOOL	m_IsAutoProlongable
	If the behaviour is automatically prolonged: not necessary to reverify the constraints Default: TTRUE. More...
TBOOL	m_OneSolutionForPerson
	If the scenario accepts only one solution for a person: e.x. Inside_Zone Default: TFALSE. More...
CTList	m_PositiveEntityVars
	Temporal variables: automatically generated by the scenario model compiler. More...
CTList	m_NegativeEntityVars
	Temporal variables corresponding to the expected entities. More...
CTList	m_NegativeActorsVars
	Temporal variables corresponding to the forbidden entities. More...
CTList	m_NeededNegativeVars
	Temporal variables corresponding to the forbidden actors. More...
CTList	m_TempVars
	List of list of needed negative variables for each negative constraint. More...
CTList	m_ProductionVars
	Temporal variables for the model. More...
CTTree	m_OldItemConstructors
	Tree of default constructors. More...
Static Public Attributes
CTList	m_BuiltExpectedModels
	To stock the models to be built the expected models. More...

---

Detailed Description

A model.

---

Constructor & Destructor Documentation

CTSRModel::CTSRModel ( )

Constructor/destructor.

---

Member Function Documentation

TINT CTSRModel::ActorOfTypeCount ( TINT Type ) [virtual]

Get the number of actor variable of a type (zone, equipement, wall, ...).

TBOOL CTSRModel::AttachVarConstraints ( ) [virtual]

Attach variable for the constraints: attach object for the variable presenting in the constraints and create temporal variables if neccessary This fnction must be called after set context for the motor and after CreateEntityVars(); and before ClassifyConstraints();.

TBOOL CTSRModel::Build ( ) [virtual]

Build the constraints Objects: list of environment objects.

TBOOL CTSRModel::BuildActorVarConstraints ( ) [virtual]

Build the constraints for the actor variables: gather the constraints for the actor variables Must be called after AttachVarConstraints().

TBOOL CTSRModel::BuildEntities ( ) [virtual]

Build entities: link to the variables/actors/objects of enviremet.

TBOOL CTSRModel::BuildEntityVarConstraints ( ) [virtual]

Build the constraints for the entity variables: gather the constraints for the entity variables Must be called after CreateEntityVars(), ClassifyConstraints(), AttachVarConstraints().

TBOOL CTSRModel::BuildExpectedModels ( CTList pModels ) [virtual]

Build the expected models: create the trigger models.

CTSREntityHolder * CTSRModel::BuildFromOrigin ( CTSRModel * pOriginModel, CTSREntityHolder * Start, CTSREntityHolder * Termination ) [virtual]

An intermediate model build the lists of actors, constraints,... from an original model.

CTList CTSRModel::BuildIntermediateModels ( ) [virtual]

Generate the list of intermediate models: The list of sub-scenarios must be ordered in time before calling this function S = (S1, S2, S3, S4) => (((S1, S2), S3), S4).

TBOOL CTSRModel::ClassifyConstraints ( )

Classify the constraints into 2 categories: Positive constraints and Negative constraints.

TBOOL CTSRModel::CreateEntityVars ( ) [virtual]

Create entity variables from EntityHolders: Create variable and category them in POSITIVE and NEGATIVE After OrderSubScenarios().

TBOOL CTSRModel::CreateNeededNegativeVars ( )

Create the list of all needed negative variables for all negative constraints.

TBOOL CTSRModel::CreateNegativeActorVariables ( ) [virtual]

Create negative actor variables for the model.

CTList CTSRModel::CreateTriggers ( CTList pTriggerInstances, CTSRBehaviourInstance * pTermination, TLPCSTR lpCreatedTriggers = TNULL ) [virtual]

Create the list of trigger instances if the model is satisfied lpCreatedTriggers([0, 1, 1,....]): marks the triggers are used. NULL => create all.

CTList CTSRModel::FindEntityPrivateActorVariables ( CTSREntityHolder * pEntity, TBOOL bExpectedEntity = TTRUE ) [virtual]

Find the actor variables the appear in a given entity but do not appear in the others.

CTAlarm * CTSRModel::GenerateAlarm ( CTObject * ScenarioInstance ) [virtual]

Generate an alarm: this fnction generates a new alarm when a behavior of this model is just recognised.

TLPSTR CTSRModel::GenerateItermediateModelName ( TLPSTR pBuff, TINT nModel ) [inline, virtual]

Generate name for an intermediate model. { sprintf((char*)pBuff, "%s_%02d", GetName(), nModel); return pBuff; };

CTSRModel * CTSRModel::GenerateUncertainModel ( TLPCSTR SubscenarioName ) [virtual]

=============================================================== FOR UNCERTAIN PROCESSING: these functions will be called before all processings Generate a scenrio model by removing a sub-scenario.

CTList CTSRModel::GetConstraintNeededNegativeVars ( CTList Expression, CTList pResult = TNULL )

Create the list of negative variable needed to evalue a negative constraint Expression: expression to calculate pResult: the list to stock all variables, NULL: create a new list.

CTList CTSRModel::GetDependenceModelNames ( ) [virtual]

Return the list of dependence model (sub-scenario model) names Before delete tehh list, must call Delete(TFALSE) for remove the list without remove the holded elements.

TBOOL CTSRModel::IsAutoProlongable ( ) [virtual]

Determine if the behaviour may be prolonged automatically without reverification of its constraints This will be called by the initial module.

TBOOL CTSRModel::IsPrimaryModel ( ) [inline, virtual]

To verify if it's a primary model: normally, it's state model This function run correctly is Build was called. { return m_Termination == TNULL; };

TBOOL CTSRModel::IsSatisfied ( CTSRTriggerInstance * pTrigger, TBOOL FirstSolution ) [virtual]

When the actor variables are well attached a value. We call this function to verify if it exists a sequences of entities matching the model. This process will assign for each temporal variable a value. pTrigger: the trigger to verify. NULL -> nothing to verify (primary model). Normally: a complex scenario contains 2 sub-scenarios (start & termination). The termination is contained in the trigger. So we must search only a value for the start.

TBOOL CTSRModel::ModifyTemporalConstraints ( ) [virtual]

Replace a temporal variable by an expression to acces to the variable in an intermediate model.

TBOOL CTSRModel::OrderSubScenarios ( ) [virtual]

To order in time the sub-scenarios of the scenario model To do this, we use the method of C. Dousson and M. Ghallab to build a graph of temporal relations of sub-scenarios.

CTSRObject * CTSRModel::Produce ( )

Create and fill in every fields of the produced object.

TBOOL CTSRModel::RemoveAnEntity ( TLPCSTR SubscenarioName ) [virtual]

Remove an entity by it name.

TBOOL CTSRModel::RemoveConstraints ( TLPCSTR VariableName ) [virtual]

Remove all constraints containing a variable.

TBOOL CTSRModel::VerifyActorVariable ( CTSRVar * pVar ) [virtual]

For the composed scenarios, we need to verify that all actor variables present in entities.

TBOOL CTSRModel::VerifyNegativeConstraints ( ) [virtual]

If the scenario model contains a negative entity, we need verifying it. Do to this, we need find a recognized scenario sf corresponding the forbidden entity. If it exists a sf satisfying all constraints => the scenario is not recognized. This function is only called in the recgnition of a composed scenario.

CTSRModel & CTSRModel::operator= ( CTSRModel & Object )

Operations.

---

Field Documentation

CTList CTSRModel::m_ActorVars

The actor variables of the model.

CTSRAlarmModel * CTSRModel::m_AlarmModel

Object containing every formulas to be used to product a new entity.

CTList CTSRModel::m_BuiltExpectedModels [static]

To stock the models to be built the expected models.

CTList CTSRModel::m_Constraints

The behaviors are forbidden.

CTList CTSRModel::m_EnVars

Model of the alarm model Optional.

CTList CTSRModel::m_ExpectedEntities

For loading the model: This is the definition of experts.

CTList CTSRModel::m_ForbiddenEntities

The expected sub behaviors.

TBOOL CTSRModel::m_IsAutoProlongable

If the behaviour is automatically prolonged: not necessary to reverify the constraints Default: TTRUE.

TBOOL CTSRModel::m_IsBaseClass

If the model is needed to construct another model.

CTList CTSRModel::m_MissedVariables

This is used for the intermediate models to indicate its original model.

CTList CTSRModel::m_NeededNegativeVars

Temporal variables corresponding to the forbidden actors.

CTList CTSRModel::m_NegativeActorsVars

Temporal variables corresponding to the forbidden entities.

CTList CTSRModel::m_NegativeConstraints

The constraints have not any negative variable.

CTList CTSRModel::m_NegativeEntityVars

Temporal variables corresponding to the expected entities.

CTTree CTSRModel::m_OldItemConstructors

Tree of default constructors.

TBOOL CTSRModel::m_OneSolutionForPerson

If the scenario accepts only one solution for a person: e.x. Inside_Zone Default: TFALSE.

CTList CTSRModel::m_PositiveConstraints

The termination of a behavior.

CTList CTSRModel::m_PositiveEntityVars

Temporal variables: automatically generated by the scenario model compiler.

CTList CTSRModel::m_ProductionFormulas

All the constraints defined by experts.

CTList CTSRModel::m_ProductionVars

Temporal variables for the model.

CTSREntityHolder * CTSRModel::m_Start

For model environment variables For compiled model: This is for recognizing the model.

CTList CTSRModel::m_TempVars

List of list of needed negative variables for each negative constraint.

CTSREntityHolder * CTSRModel::m_Termination

The start of a behavior.

CTList CTSRModel::m_Triggers

This is used to store the temporal variables will be generated by the intermediate models Trigger models: automatically generated by the compiler.

CTSRModel * CTSRModel::m_pOriginalModel

The constraints have atleast one negative variable.

---

The documentation for this class was generated from the following file:

• /lib/libtvuscenario_rec/tvu_sr.h

---
