CTPrimitiveObject Class Reference

General definition of a primitive object. Primitive object is used to construct the objects of the world. More...

#include <tvu_primitive_objects.h>

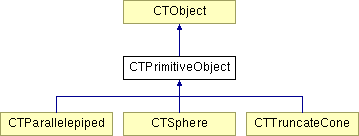

Inheritance diagram for CTPrimitiveObject::

Public Types
enum	{ FACE_MAXPOINTS = 16 }
Public Methods
	CTPrimitiveObject ()
	Contructors/Destructors. More...
virtual	~CTPrimitiveObject ()
	DEFINE_ID_FUNCTIONS (CTPrimitiveObject, CTObject, CLASSNAME_PRIM_OBJECT_ID, CLASSNAME_PRIM_OBJECT) public
virtual TBOOL	IsMobileObject ()
virtual TPOINT3D	GetLocation ()
virtual CTList	GetSaveLoadObjects (TBOOL bOnLoad=TTRUE)
	The children to save/load. More...
virtual TBOOL	Display (THFILE lpDevice=TNULL)
	Display to a device (a file), lpFile == NULL means that the device is GEOMVIEW This fonction may be used for writing the object to a file oogl. More...
virtual TBOOL	OnDisplaying (THFILE lpDevice)
	Will be called for displaying. More...
virtual TBOOL	Move ()
	Moving, rotating. More...
virtual TBOOL	Rotate ()
virtual TBOOL	Project ()
virtual TBOOL	BuildObject ()
	Create the shape ==> list of points/faces. More...
virtual TBOOL	OnBuildObject ()
virtual TBOOL	GetBoundary (BOUNDARY &Boundary)
	Get the boundary of the object. More...
virtual void	Delete ()
	For deleting the object. More...
virtual CTPrimitiveObject&	operator= (CTPrimitiveObject &AnObject)
	Operations. More...
CTRGB&	GetRGB ()
	For private data Color. More...
CTPoint3D&	GetPosition ()
	Position, angles and size. More...
CTAngles&	GetAngles ()
CTSize3D&	GetSize ()
CTSize3D&	GetCurrentSize ()
TBOOL	GetPoint (TINT nIndex, LPTPOINT3D lpPoint)
	Get the point of index. More...
Protected Types
typedef struct CTPrimitiveObject::tagFACE	FACE
	Private data struct Face = Number of points + list of index of points. More...
typedef struct CTPrimitiveObject::tagFACE *	LPFACE
	Private data struct Face = Number of points + list of index of points. More...
typedef struct CTPrimitiveObject::tagPRIVATEDATA	PRIVATEDATA
typedef struct CTPrimitiveObject::tagPRIVATEDATA *	LPPRIVATEDATA
Protected Methods
virtual TBOOL	AllocateBuffers ()
virtual TINT	GetPointsCount ()
virtual TINT	GetFacesCount ()
Protected Attributes
CTRGB	m_RGB
	Data Color. More...
CTPoint3D	m_Position
	Position and size. More...
CTAngles	m_Angles
CTSize3D	m_Size
CTSize3D	m_CurrentSize
LPTBYTE	m_Buffers
	Private pointer to a LPPRIVATEDATA structure. More...

---

Detailed Description

General definition of a primitive object. Primitive object is used to construct the objects of the world.

---

Member Typedef Documentation

typedef struct CTPrimitiveObject::tagFACE CTPrimitiveObject::FACE [protected]

Private data struct Face = Number of points + list of index of points.

typedef struct CTPrimitiveObject::tagFACE * CTPrimitiveObject::LPFACE [protected]

Private data struct Face = Number of points + list of index of points.

---

Constructor & Destructor Documentation

CTPrimitiveObject::CTPrimitiveObject ( )

Contructors/Destructors.

---

Member Function Documentation

TBOOL CTPrimitiveObject::BuildObject ( ) [virtual]

Create the shape ==> list of points/faces.

void CTPrimitiveObject::Delete ( ) [virtual]

For deleting the object.

TBOOL CTPrimitiveObject::Display ( THFILE lpDevice = TNULL ) [virtual]

Display to a device (a file), lpFile == NULL means that the device is GEOMVIEW This fonction may be used for writing the object to a file oogl. Reimplemented from CTObject.

TBOOL CTPrimitiveObject::GetBoundary ( BOUNDARY & Boundary ) [virtual]

Get the boundary of the object. Reimplemented from CTObject.

TBOOL CTPrimitiveObject::GetPoint ( TINT nIndex, LPTPOINT3D lpPoint )

Get the point of index.

CTPoint3D & CTPrimitiveObject::GetPosition ( ) [inline]

Position, angles and size. { return m_Position; };

CTRGB & CTPrimitiveObject::GetRGB ( ) [inline]

For private data Color. { return m_RGB; };

CTList CTPrimitiveObject::GetSaveLoadObjects ( TBOOL bOnLoad = TTRUE ) [virtual]

The children to save/load. Reimplemented from CTObject.

TBOOL CTPrimitiveObject::Move ( ) [virtual]

Moving, rotating.

TBOOL CTPrimitiveObject::OnDisplaying ( THFILE lpDevice ) [virtual]

Will be called for displaying.

CTPrimitiveObject & CTPrimitiveObject::operator= ( CTPrimitiveObject & AnObject ) [virtual]

Operations.

---

Field Documentation

LPTBYTE CTPrimitiveObject::m_Buffers [protected]

Private pointer to a LPPRIVATEDATA structure.

CTPoint3D CTPrimitiveObject::m_Position [protected]

Position and size.

CTRGB CTPrimitiveObject::m_RGB [protected]

Data Color.

---

The documentation for this class was generated from the following file:

• /lib/libtvuvisu3D/tvu_primitive_objects.h

---
