RegionModule Class Template Reference

Virtual SegmentationModule specialization used to drive the LevelSet using some region evolution. More...

#include <RegionModule.h>

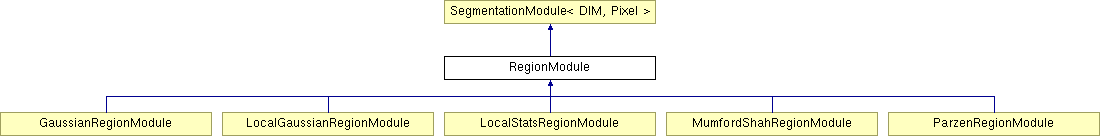

Inheritance diagram for RegionModule:

List of all members.

Public Types
typedef SegmentationModule< DIM, Pixel >	base
typedef base::LevelSet	LevelSet
typedef base::Index	Index
typedef base::Schemes	Scheme
typedef Histogram< PixelImage >	Histogram
typedef BaseImage< DIM, PixelImage >	ImageType
Public Member Functions
Constructors - Destructor
	RegionModule (ImageType *_data, float _weight=1.f, bool _adaptive=true)
	Constructor.
virtual	~RegionModule ()
	Destructor.
Modify/Access member data
void	set_data_term (ImageType &_data)
	Set the Image to segment.
Histogram *	hist_pos ()
	Histogram of the positive region.
Histogram *	hist_neg ()
	Histogram of the negative region.
Member functions
virtual float	value (const LevelSet &phi, const Index &ind)
	Value of the module at a point.
virtual float	energy (const LevelSet &phi, const Index &ind)
	Energy of the module at a point.
virtual void	init (const LevelSet &phi)
	Initialize the module.
virtual void	update (const LevelSet &phi)
	Update the module.
virtual void	save_result (const LevelSet &phi, std::string evodir, int iter)
	Save results depending on the module data.
void	init_histograms (const LevelSet &phi)
	compute the histograms of the image, in the area inside and outside the zero level set
void	update_histograms (const LevelSet &phi)
	update the histograms of the image, in the area inside and outside the zero level set
void	save_histograms (std::string evodir, int iter)
	save the histograms
Protected Attributes
Member data
ImageType *	m_data
	Image to segment.
Histogram *	m_hist_pos
	Histogram of the image in the positive region of the level set.
Histogram *	m_hist_neg
	Histogram of the image in the negative region of the level set.

---

Detailed Description

template<unsigned DIM, typename Pixel = float, typename PixelImage = float>
class segmentation::RegionModule< DIM, Pixel, PixelImage >

Virtual SegmentationModule specialization used to drive the LevelSet using some region evolution.

Author:

Mikael Rousson

Note:

This module has an image in member, and gives some functions to estimate histograms inside and outside a given LevelSet

You can fix the histogram of each region by setting their 'adaptative' attribute to false

Definition at line 28 of file RegionModule.h.

---

Constructor & Destructor Documentation

RegionModule	(	ImageType *	_data,
		float	_weight = 1.f,
		bool	_adaptive = true
	)			[inline]

Constructor.

Parameters:

_data	image to segment
_weight	weight of the module
_adaptive	if the module is adaptive

Definition at line 105 of file RegionModule.h.

                :SegmentationModule<DIM, Pixel>(_weight, _adaptive), m_data(_data), m_hist_pos(NULL), m_hist_neg(NULL)
        { }

---

The documentation for this class was generated from the following file:

• /home/jpiovano/src/Odyssee++/trunk/Libs/LevelSet/src/SegmentationModule/RegionModule.h
