Epspectra Implementation
README
Prior to installing Epspectra, it requires the installation of
Esterel compiler application. The Esterel compiler is currently available
to Esterel Technologies with
Ver. 5.92 . The Epspectra application is implemented based on
the linux system of intel pentium family machine. It is expected to run
correctly with the following:
Linux 2.2.18 or later,
Intel pentium 600Mhz and
a version at least as new as g++ v2.8.1 or egcs-2.90.2.
We also tested with no problem on a laptop of pentium 366Mhz, but
the performance result is quite sensitive to the power of machine since
it is a real-time software application. For instance, this gsm application
should produce modulated signals at an output rate of 22.2kbps. It is for
sure important to have to absorb jitter happening when it produces them
sometimes faster or sometimes slower than in real-time.
To compile, please try the following:
1. Download and place source tar file in your home directory as
~/.
epspectra_v01.tgz
(MD5 fingerprint: b11c209b64c5f1442cfbe15a20f7c783)
2. Untar the downloaded file (which will be extracted with subdirectory
of epspectra.)
tar zxvf epspectra_v01.tgz
3. Type:
either
export SPECTRA_BASE=~/epspectra (if you use bash)
or
setenv SPECTRA_BASE ~/epspectra (if you use csh or tcsh)
If you don't like to do that, directly modify and validate SPECTRA_BASE
with Makefile.include in the subdirectory of ~/epspectra/data_flow_model/.
In case of that, SPECTRA_BASE must be set to an absolute path onto
'data_flow_model'.
4. Edit Makefile.include in the directory of ~/epspectra.
Parameters including ESTEREL, XES and XEVE should be maybe modified.
5. Type:
cd radio_gsm
make
That will build gsm programs with 'gsm_dnlink' to perform series
of operations from speech to modulation and with 'gsm_uplink' to perform
the operations from demodulation to PCM signals. In addition to these
programs, for test, it will also generate 'gsm_all' which performs
the operations from speech to modulation and back to demodulation for PCM
signals at a time.
6. To test the programs, first of all, verify whether 'gsm_all'
works or not.
Type:
./gsm_all papin2.au (16bit-sampled data)
If it works, then open another window (don't forget the third phase
of setting SPECTRA_BASE if not directly specifed).
In the first window, type
./gsm_uplink source (which corresponds to ip address or name
that signals are received from).
In the second window, type
./get_dnlink destination (which corresponds to ip address or
machine name that signals are sent to).
In this case, source and destination are same since both applications
operates at the same machine. The input file of get_dnlink is implicitely
specified to inputs.au. These uplink and downlink tests depend on the
power of machine which computes signals sent to fast or slow. In the side
of downlink, it may require an appropriate sleep to adjust a quantity of
remains of sending data in buffer neither to overflow buffer nor to
make it empty. An adjustment to sleeping time can be made in ~/epspectra/data_flow_model/lib/c++/snk/StrlUDPSink.h.
There are also simple programs modified from examples of software
radio which may require modification specially concerning interface (which
corresponds to ~/epspectra/data_flow_model/lib/interface). It may be
quite unconvient for you. (sorry for that. It reminds you that Esterel
is not a high-level language and perhaps I'm lazy. Please do that.)
If you have any problems, please send them to:
Hahnsang Kim
Hahnsang.Kim@inria.fr
Simulation & Verification
Those need the Xes simulator and the Xeve verifier strongly coupled
with Esterel. These applications are included in the Esterel Package
that you may have downloaded above.
3 properties including Correctness, Saftety and Safety-Liveness
are verified.
To confirm the verification, please do the following:
1. Type:
cd radio_gsm
make xeve
That will generate blif codes of Verif_Gsm_Dnlink.blif and Verif_Gsm_Uplink.blif.
The optimization process can be performed to the final targeted format
of blif. If you don't have any application for optimization like
remlatch and areaopt, skip the process of optimization.
2. Type respectively:
xeve Verif_Gsm_Dnlink.blif (Verif_Gsm_Dnlink.opt.blif or Verif_Gsm_Dnlink.opt.opt.blif
if optimized.)
and
xeve Verif_Gsm_Uplink.blif (Verif_Gsm_Uplink.opt.blif or
Verif_Gsm_Uplink.opt.opt.blif if optimized.)

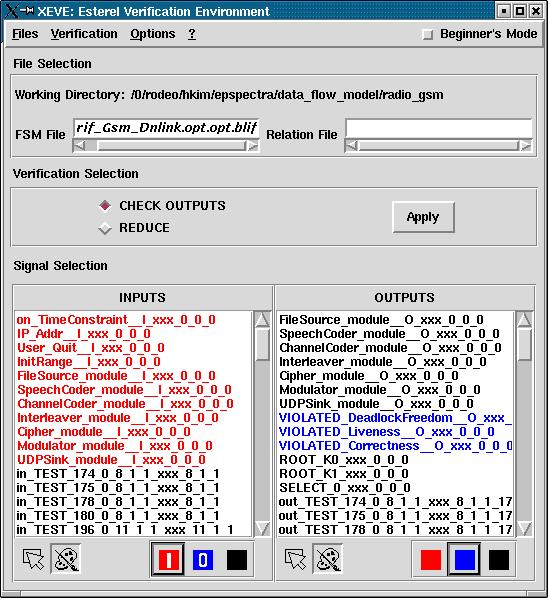

That will make Xeve window show up below. After setting some input
signals to a certain value (0 or 1), it also sets output signals to confirm
whether any signal outputs may be possibly emitted or not. Do select the
radio button of check outputs and then click Apply button.

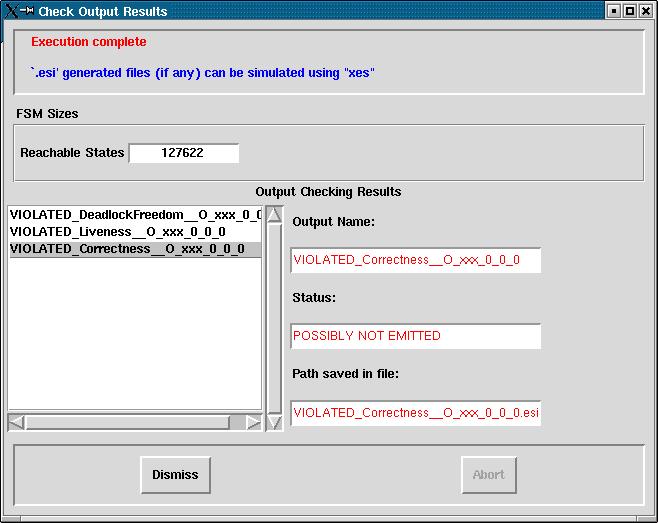

A window below showing the results will appear with the number of
reachable states. Xeve also generates a simulation tape showing a path
to reach some state. It allows one to trace a path if there is a path
possibly emitted.
There are some verification functions in Xeve. Please look at the
manual of Xeve and try them.
Documents
There are some documents to show the software architecture concerning
Epspectra in the directory of ~/epspectra/doc.
Last modified on the 27th of august, 2002 since
the 27th of august, 2002.
