7. Creating an Observer

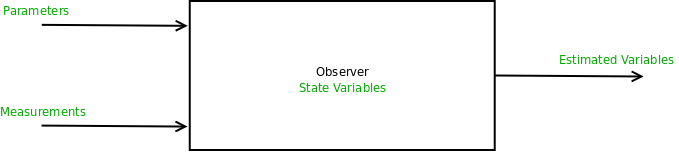

Observers can be defined as software sensors. An Observer has Sensors and other Observers for inputs, maintains its state, and produces one or more estimated variables.

7.1 Observer Code Structure

The Observer code is structured in four steps, two of which are initialization steps and two of which are run during each control loop. These steps are:

• Setup (one execution on startup)
• Init (one execution on startup)
• Integration (executed on each iteration of the control loop)
• EstimatedVarsComputation (executed on each iteration of the control loop)

The Setup step is where the Observer is described: the needed inputs are declared, and the produced estimated variables, parameters, and state variables are defined.

In that step, you will:

• Declare the necessary inputs (Sensors and other Observers). At run time, these will receive the required values from Odin. Inputs are identified by their UID, which should mirror the ones declared in Bioprocess configuration files and in other Observers.
• Declare the parameters - these are the constants of your system, say a bioreactor's volume or a chemical constant.
• Declare the state variables - these represent the internal state of your system, i.e. they are not seen from outside.

The Init step is where initial values are set.

7.2 Observer Example

Note that other examples can be found in the ‘observers’ directory of your Odin install.

//===================================================================
//
// Copyright INRIA Sophia Antipolis 2008, all rights reserved
//
// Project : Odin
//
// Description: Biomass observer
//
// Author: Romain Primet <romain.primet@sophia.inria.fr>
//
//===================================================================


function hrs = secToDays(tSec)
   hrs = tSec/(24.*60.*60.);
endfunction


/// Computes the system state's derivative ///

function ydot = obs(t,y)
,
  qIn = Inputs("SensorB-qIn")("value");
  sIn = Inputs("SensorB-sIn")("value");

  vLiq = Parameters("vLiq")("value");
  k1   = Parameters("k1")("value");

  d    = qIn/vLiq;

  ydot = -d*y + (k1)*d*sIn;

,
endfunction

function y = doContinuousIntegration(Inputs, Parameters, StateVars),
   StateVarValue = [StateVars("z")("value")];
   y     = ode(StateVarValue,tLast,tCurr/(24.*60.*60.),obs);
endfunction

function sv = doDiscreteIntegration(Inputs, Parameters, StateVars),
  //fill in this function
  sv = 0.
endfunction


//// Control loop entry points ////

select ObsJob,

  case 'Setup' then
    exec('./observers/factories.sci');

    ObsName = 'obs';
    ObsDescription = 'Asymptotic observer for biomass estimation';
    continuousScheme = %t; //set to %f if integration step is to be discrete

    //EDIT
    InputsRequiredUid = ['SensorA-s'; 'SensorB-qIn'; 'SensorB-sIn'];

    //DO NOT EDIT
    Inputs = tlist([["Inputs"] ; InputsRequiredUid]);

    //Note that parameters are constant
    //EDIT
    ParametersUid = ['vLiq'; 'muMax'; 'ksm'; 'lambda'; 'k1'; 'k6' ];

    //DO NOT EDIT
    Parameters = tlist([["Parameters"] ; ParametersUid]);

    //State variables (or estimated variables)
    //EDIT
    StateVarsUid = ['z' ];

    //DO NOT EDIT
    StateVars = tlist([["StateVars"] ; StateVarsUid]);

    //Estimated variables
    //EDIT
    EstimatedVarsUid = ['obs-xc'];

    //DO NOT EDIT
    EstimatedVars = tlist([["EstimatedVars"] ; EstimatedVarsUid]);

    //EDIT
    //Initialize individual inputs
    IName = "SensorA-s";
    Inputs(IName) = makeSensor();
    Inputs(IName)("deviceUid") = 'SensorA-s';
    Inputs(IName)("value") = 0.;
    Inputs(IName)("timestamp") = 0.;

    IName = "SensorB-qIn";
    Inputs(IName) = makeSensor();
    Inputs(IName)("deviceUid") = 'SensorB-qIn';
    Inputs(IName)("value") = 0.;
    Inputs(IName)("timestamp") = 0.;

    IName = "SensorB-sIn";
    Inputs(IName) = makeSensor();
    Inputs(IName)("deviceUid") = 'SensorB-sIn';
    Inputs(IName)("value") = 0.;
    Inputs(IName)("timestamp") = 0.;

    //Initialize individual parameters
    PName = "vLiq";
    Parameters(PName) = makeParameter();
    Parameters(PName)("label") = 'vLiq';
    Parameters(PName)("uid") = 'vLiq';
    Parameters(PName)("description") = 'Bioreactor volume';
    Parameters(PName)("value") = 900.;
    Parameters(PName)("unit") = 'L';

    PName = "k1";
    Parameters(PName) = makeParameter();
    Parameters(PName)("label") = 'k1';
    Parameters(PName)("uid") = 'k1';
    Parameters(PName)("description") = 'k1';
    Parameters(PName)("value") = 1.;
    Parameters(PName)("unit") = 'mmol/g';

    SVName = "z";
    StateVars(SVName) = makeStateVar();
    StateVars(SVName)("label") = 'z';
    StateVars(SVName)("uid") = 'z';
    StateVars(SVName)("description") = 'z';
    StateVars(SVName)("value") = 0.;
    StateVars(SVName)("unit") = 'Day^{-1}';

    //Attributes should exactly mirror input attributes.
    EVName = "obs-xc";
    EstimatedVars(EVName) = makeEstimatedVar();
    EstimatedVars(EVName)("physicalDeviceLabel") = 'Biomass concentration observer';
    EstimatedVars(EVName)("physicalDeviceUid") = 'obs';
    EstimatedVars(EVName)("deviceUid") = 'obs-xc';
    EstimatedVars(EVName)("dataLabel") = 'xc';
    EstimatedVars(EVName)("dataDescription") = 'Biomass concentration (estimated)';
    EstimatedVars(EVName)("unit") = 'g/L';
    EstimatedVars(EVName)("domain") = [-1000; 1000];
    EstimatedVars(EVName)("validityPeriod") = -1.;
    EstimatedVars(EVName)("value") = 0.;
    EstimatedVars(EVName)("timestamp") = 0.;

 ,

  case 'Init' then
    tLast = tCurr/(24*60*60);

    //EDIT initial values
    StateVars("z")("value")  = 5.0;
  ,

  //DO NOT EDIT this step, instead edit either doContinuousIntegration
  //or doDiscreteIntegration
  case 'Integration' then
    	if continuousScheme then,
          y = doContinuousIntegration();
	  StateVars("z")("value") = y(1);
        else,
          doDiscreteIntegration();
        end
  ,

  //Computation of estimated variables
  case 'EstimatedVarsComputation' then
    z                    = StateVars("z")("value");
    k1                   = Parameters("k1")("value");
    s                    = Inputs("SensorA-s")("value");
    xc                   = max(0,(z - k1*s));

    printf("z=%f, k1=%f, s=%f, xc=%f, sIn=%f, qIn=%f\n", z, k1, s, xc, Inputs("SensorB-sIn")("value"), Inputs("SensorB-qIn")("value"));

    EstimatedVars("obs-xc")("value") = xc;
    tLast = tCurr/(24*60*60);
  ,

  //Otherwise
  else
    disp('Observer job flag unknown');
    //make observer fail if the flag is unknown
    //(better fail explicitly than silently)
    pause;

end;
